Ksdd 5600 Q Extractor 5600 M³/H 68 Dba Vents

KSDD 5600 Q EXTRACTOR 5600 M³/H 68 DBA VENTS

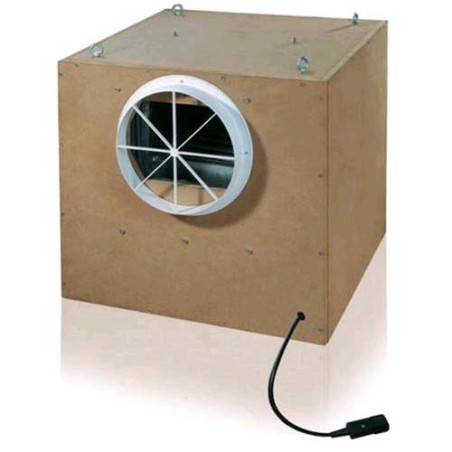

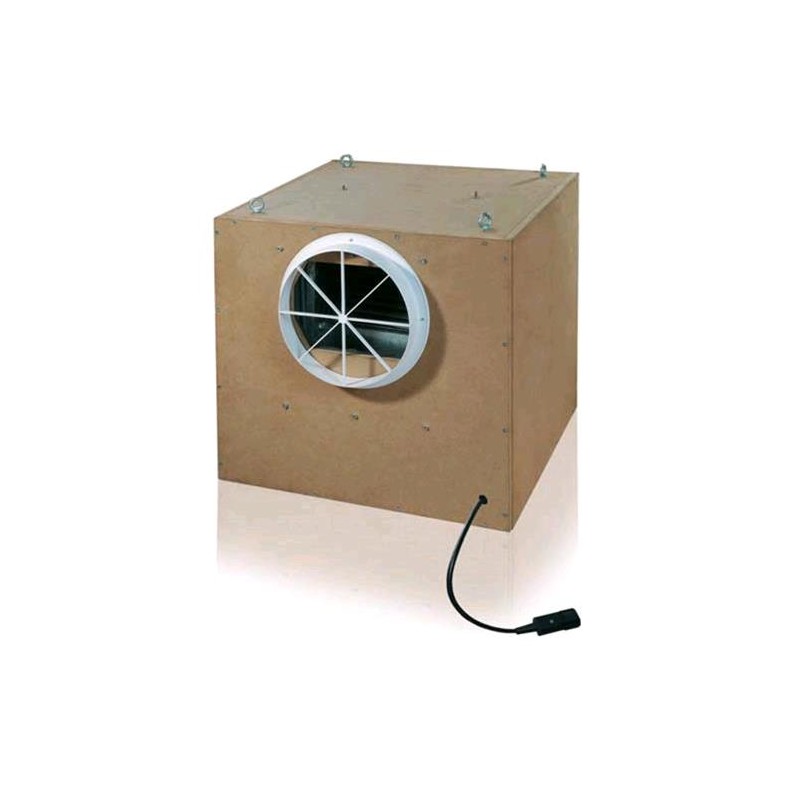

Ksdd 5600 Q Extractor 5600 M³/H 68 Dba by Vents is a high-performance centrifugal extractor designed for professional environments. Ksdd 5600 Q Extractor offers high airflow with a capacity of up to 5600 m³/h. Its soundproof structure reduces noise levels to 68 dBA, making it ideal for use in greenhouses and grow rooms. With anti-vibration supports, noise is further minimized. The flexible connection reduces vibrations, ensuring quiet and efficient operation.

The body of the extractor is made of MDF with polyurethane foam, providing effective thermal and acoustic insulation. The ABS flanges allow for dual suction with a diameter of 250 mm and an outlet of 315 mm. The asynchronous motor, available in 4 or 6 pole versions, features a dual suction impeller and forward-curved blades to maximize efficiency. Additionally, the overheating protection system with automatic restart ensures safe and durable use.

Speed control is possible via a thyristor or autotransformer, allowing performance to be tailored to specific system requirements. The flexible mounting options enable installation in any position, making it versatile for various ventilation systems. This extractor is the ideal choice for those seeking high airflow and low noise in intensive ventilation systems.

TECHNICAL SPECIFICATIONS:

1. Power: 750 W.
2. Maximum airflow: 5600 m³/h.
3. Noise level: 68 dBA.
4. Speed: 890 RPM.
5. Voltage: 230 V / 50 Hz.
6. Current: 6.4 A.
7. Suction flanges: 2 x 250 mm.
8. Discharge flange: 315 mm.
9. Maximum operating temperature: 20 +40 °C.
10. Protection class: IP 42.

MAIN FEATURES:

1. Soundproof structure: MDF body with polyurethane foam.
2. Anti-vibration supports: reduce noise.
3. Flexible connections: minimize vibrations.
4. Speed control: via thyristor or autotransformer.
5. Flexible mounting: compatible with round ducts.

WHY CHOOSE IT:

This extractor is designed to deliver high performance in professional environments. Its soundproof structure makes it ideal for noise-sensitive spaces. The high airflow capacity allows for handling large volumes without compromising quietness. High-quality materials ensure durability and reliability over time. Flexible installation options allow adaptation to various system configurations. Overheating protection enhances operational safety. Finally, the compact design facilitates integration into existing systems. Product from the Vents brand. Model Ksdd 5600 Q Extractor 5600 M³/H 68 Dba.
