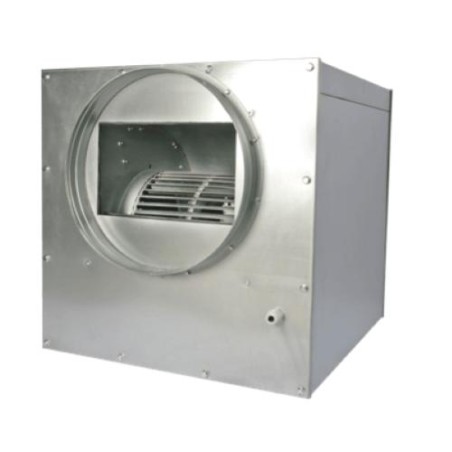

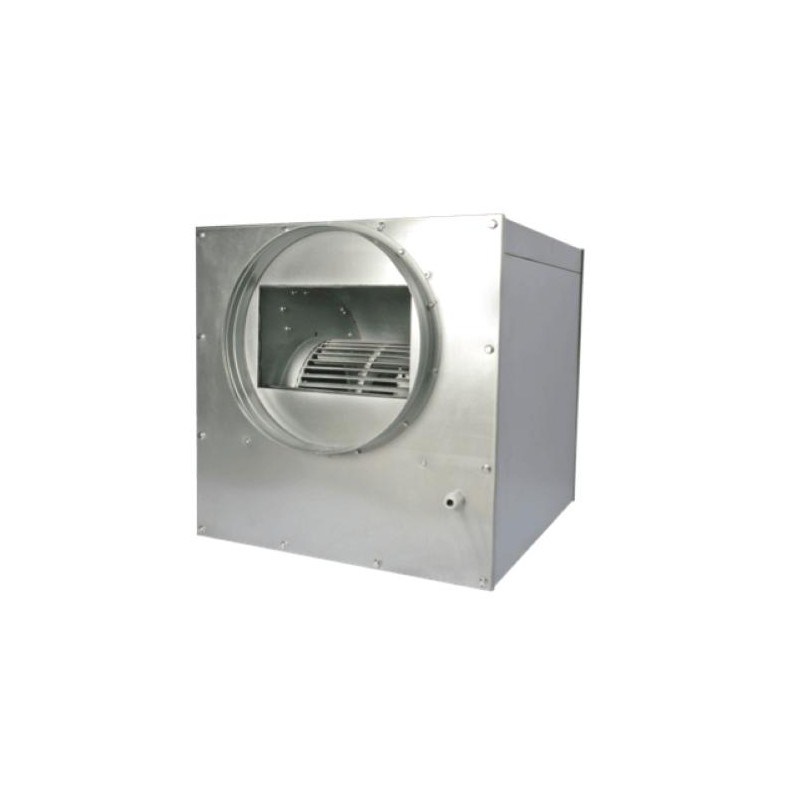

Iso Box Steel Ducted Extractor Steel 4250 M3H Airfan

ISO BOX STEEL DUCTED EXTRACTOR STEEL 4250 M3H AIRFAN

Iso Box Steel Ducted Extractor Steel 4250 M3H by Airfan is designed for installation in circular air ducts. This device is ideal for applications requiring high air flow and quiet operation. Its maximum flow rate is 4250 m³/h, making it suitable for medium and large environments.

The compact design allows for simple and fast installation. The galvanized steel structure ensures robustness and durability over time. Additionally, it features high-quality foam sound insulation, reducing the noise level to only 37.2 dB. This makes it particularly suitable for noise-sensitive environments.

The device is designed to operate within a temperature range of -30°C to +70°C. This versatility makes it suitable for various environmental conditions. The adjustment capability is excellent, allowing precise control of airflow. It is available for immediate delivery with various flow rates, from 250 m³/h to 7000 m³/h.

The front and rear flanges are designed to facilitate installation. The front flange has a diameter of Ø 315 mm, while the rear flanges are 2x250 mm. The device weighs 30.5 kg, making it easy to handle.

TECHNICAL FEATURES:

1. Type: 10-10-1400.
2. Flow rate: 4250 m³/h.
3. Maximum current: 6 A.
4. Noise level: 37.2 dB.
5. Weight: 30.5 kg.
6. Box dimensions: 550x550x550 mm.
7. Front flange: Ø 315 mm.
8. Rear flange: 2x250 mm.
9. Screws: M6.

MAIN FEATURES:

1. Compact design: Facilitates installation.
2. Insulation: Foam sound insulation.
3. Structure: Galvanized steel.
4. Treated air temperature: From -30°C to +70°C.
5. Continuous operation: Designed for prolonged use.

WHY CHOOSE IT:

This extractor is ideal for those seeking a quiet and powerful device. Its steel construction ensures durability and resistance. The sound insulation reduces noise, making it perfect for sensitive environments. The versatility of use in different temperatures makes it an excellent choice. The ease of installation is an additional advantage. It is available in various flow rates to meet different needs. The adjustment capability allows precise control of airflow. Choosing Iso Box Steel Ducted means opting for high quality and performance. Product from the Airfan brand. Model Iso Box Steel Ducted Extractor Steel 4250 M3H.
