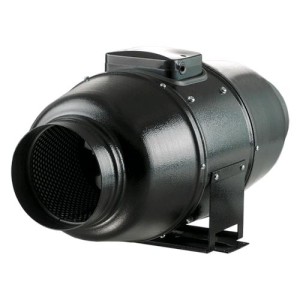

TTM125RV Silenced Extractor 230 340 M³/H 25 29 Dba Wired Iec R25 Vents

TTM125RV SILENCED EXTRACTOR 230 340 M³/H 25 29 DBA WIRED IEC R25 VENTS

TTM125RV Silenced Extractor 230 340 M³/H 25 29 Dba Wired Iec R25 by Vents is designed to ensure silent operation and high. aerodynamic efficiency. This extractor is ideal for environments where noise control is essential, such as libraries and conference rooms. Its structure is made of steel coated with synthetic polymer, ensuring durability and resistance. Thanks to the acoustically insulated design, the TTM125RV offers high performance without compromising acoustic comfort.

The technology employed allows for a powerful and constant airflow. TTM125RV Silenced Extractor 230 is compatible with air extraction ducts ranging from Ø100mm to Ø315mm. The combination of axial and centrifugal extractor characteristics provides excellent pressure and airflow. Installation is flexible, allowing the extractor to be positioned at various angles and configurations.

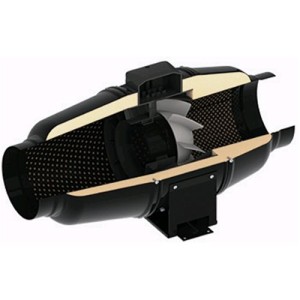

The external case is designed to withstand high temperatures. Internally, it features a 50mm thick mineral wool layer that contributes to sound insulation. This system is particularly recommended for environments where air management is required. The possibility of installing multiple units in parallel or in series further increases extraction capacity.

The TTM125RV is equipped with brackets for wall, ceiling, or floor mounting. The maximum airflow is 340 m³/h, with a power of 25/30 W. The current ranges from 0.11 A to 0.13 A. Noise levels are maintained between 23 and 28 dBA at a distance of 3 meters, ensuring discreet operation.

TECHNICAL FEATURES:

1. Maximum airflow: 340 m³/h.
2. Power: 25/30 W.
3. Current: 0.11/0.13 A.
4. Rpm: 1650/2310.
5. Noise level at 3 m: 23-28 dBA.
6. Maximum operating temperature: 40 °C.
7. Protection rating: IP X4.

MAIN FEATURES:

1. Acoustically insulated design: reduces noise.
2. Compatible with ducts: Ø100mm to Ø315mm.
3. Flexible installation: various angles.
4. Brackets included: for wall, ceiling, or floor mounting.
5. High efficiency: constant airflow.

WHY CHOOSE IT:

The TTM125RV is the ideal solution for those seeking a silent and powerful extractor. Its robust construction ensures long-lasting durability. It is designed for environments where noise must be minimized. The ease of installation makes it versatile for various applications. The combination of high performance and low noise level makes it perfect for libraries and schools. Additionally, it is compatible with various air extraction systems. This extractor is a safe investment for those who desire quality and performance. Product from the Vents brand. Model TTM125RV Silenced Extractor 230 340 M³/H 25 29 Dba Wired Iec R25.
