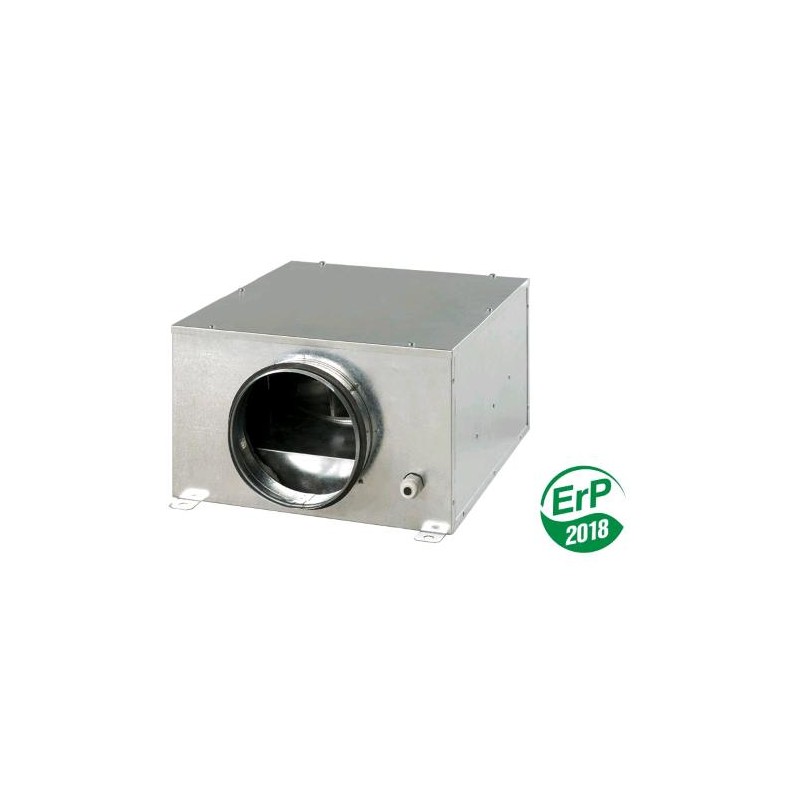

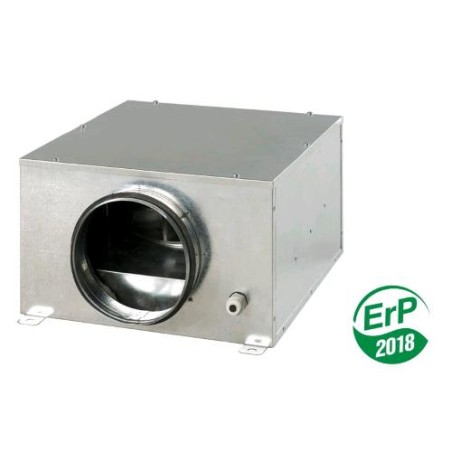

Ksb 125 R1 Silenced Extractor 330 M³/H 35 Dba Wired Vents

KSB 125 R1 SILENCED EXTRACTOR 330 M³/H 35 DBA WIRED VENTS

Ksb 125 R1 Silenced Extractor 330 M³/H 35 Dba Wired by Vents is a compact inline centrifugal fan designed for ventilation applications. in commercial and industrial settings. This device features a compact and soundproof design, ideal for spaces with low noise requirements. With a maximum airflow of 330 m³/h, it is suitable for a variety of applications. It is designed for installation in a ceiling space, facilitating integration into existing ventilation systems.

The KSB 125 R1 is equipped with backward-curved blades, ensuring efficient and quiet operation. The galvanized steel construction provides robustness and durability. The thermal and sound insulation material helps maintain the noise level at just 35 dBA, making it ideal for environments where acoustic. comfort is essential.

This extractor is compatible with round ducts of various diameters, from 100 mm to 315 mm. Its versatility allows it to adapt to different installation configurations. The fan is driven by a 2-pole asynchronous motor, equipped with built-in thermal protection. This ensures safe and maintenance-free operation over time.

Speed control is another important feature. A thyristor or autotransformer speed controller can be used to adjust airflow according to specific needs. Additionally, multiple KSB units can be connected to a single controller, provided that the nominal power and current parameters are not exceeded.

The KSB 125 R1 is designed for inline mounting within an air duct. It can be installed in any position relative to the airflow direction. This installation flexibility makes it an ideal choice for many applications. It is particularly useful in environments requiring constant temperature control, such as greenhouses.

The fan can be supplied with an electronic module for temperature and speed control. This module allows automatic adjustment of motor speed based on air temperature. This ensures optimal energy efficiency and a comfortable environment.

TECHNICAL SPECIFICATIONS:

1. Duct diameter: 125 mm.
2. Maximum airflow: 330 m³/h.
3. Sound pressure level: 35 dBA.
4. Housing material: galvanized steel.
5. Motor type: 2-pole asynchronous.
6. Thermal protection: built-in with automatic restart.

MAIN FEATURES:

1. Backward-curved fan: for quiet operation.
2. Speed control: via thyristor or autotransformer.
3. Flexible installation: in any position.
4. Suitable for greenhouses: automatic temperature control.
5. Rubber seals: for round connection ducts.

WHY CHOOSE IT:

The KSB 125 R1 is the ideal solution for those seeking a quiet and powerful extractor. Its robust construction ensures durability and reliability. The ease of installation makes it suitable for various applications. Speed control allows for optimized energy consumption. Additionally, the compact design facilitates integration into tight spaces. It is particularly effective in environments requiring low noise levels. Its versatility makes it a high-quality product. Product from the Vents brand. Model Ksb 125 R1 Silenced Extractor 330 M³/H 35 Dba Wired.
