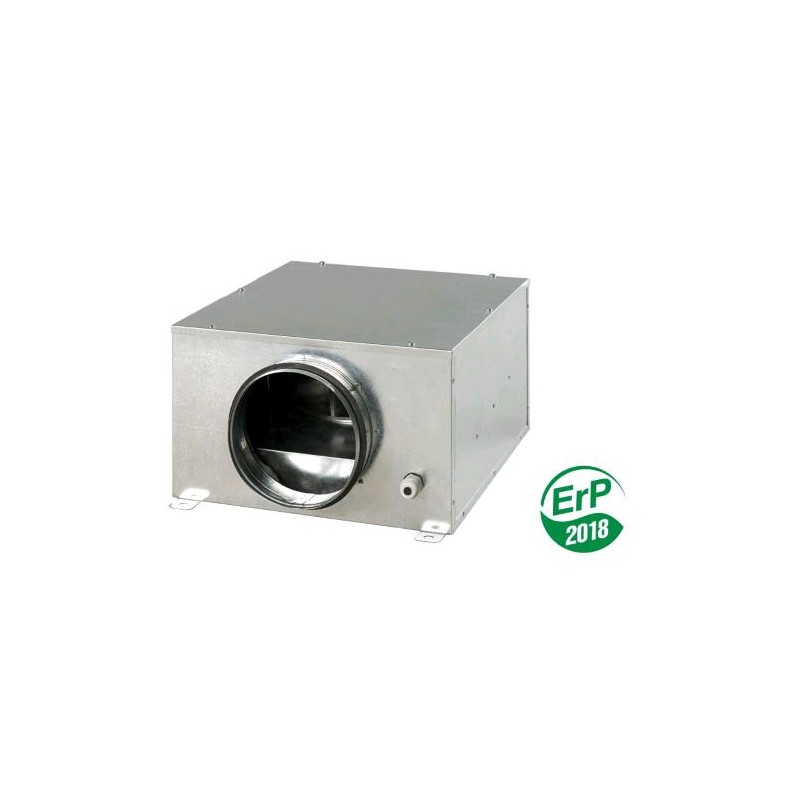

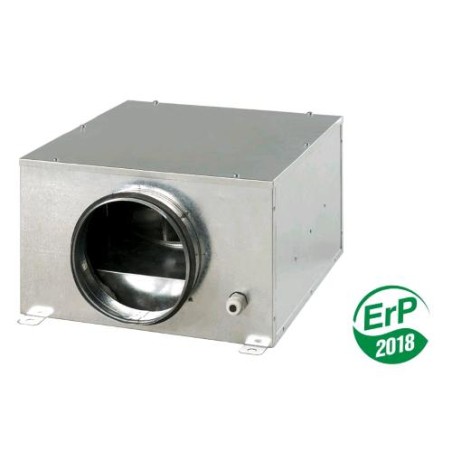

Ksb 100 R1 Silenced Extractor 240 M³/H 33 Dba Wired Vents

KSB 100 R1 SILENCED EXTRACTOR 240 M³/H 33 DBA WIRED VENTS

Ksb 100 R1 Silenced Extractor 240 M³/H 33 Dba Wired by Vents is a compact and soundproof inline fan. Ksb 100 R1 Silenced is designed for use in commercial spaces, offices, and public areas. Its maximum airflow is 240 m³/h. The sound pressure level is 33 dBA, making it suitable for environments that require low noise levels. The design allows installation in tight spaces, such as above false ceilings. It is compatible with round ducts of various diameters, from 100 to 315 mm.

The casing of the KSB is made of galvanized steel. It features thermal and sound insulation material. Rubber seals on the connecting pipes ensure excellent tightness. The fan is driven by a 2-pole asynchronous motor with an external rotor. This motor is equipped with built-in thermal protection and automatic restart. The ball bearings ensure quiet and maintenance-free operation.

Speed control is possible via a thyristor or autotransformer speed controller. Multiple KSB units can be connected to a speed controller, adhering to nominal parameters. KSB fans are designed for inline installation within an air duct. They can be installed in any position relative to the airflow direction.

This solution is ideal for ventilation in spaces requiring permanent temperature control, such as greenhouses. The fan can be equipped with an electronic module for temperature and speed control. This system provides automatic motor speed control based on the air temperature in the duct or room.

TECHNICAL FEATURES:

1. Duct diameter: 100 mm.
2. Maximum airflow: 240 m³/h.
3. Sound pressure level: 33 dBA.
4. Housing material: galvanized steel.
5. Motor type: 2-pole asynchronous.
6. Motor protection: built-in thermal.

MAIN FEATURES:

1. Soundproof: reduces operational noise.
2. Compact: suitable for tight spaces.
3. Easy installation: can be mounted in any position.
4. Speed control: via thyristor or autotransformer.
5. Versatility: compatible with various duct diameters.

WHY CHOOSE IT:

The KSB 100 R1 is designed for those seeking a quiet and efficient fan. Its robust construction ensures durability over time. It is ideal for environments requiring low noise levels. The ease of installation makes it a practical choice. The automatic temperature control enhances energy efficiency. It is a versatile solution for various applications. The excellent tightness of the connecting pipes prevents air leaks. This product represents a sound investment for ventilation. Product from the Vents brand. Model Ksb 100 R1 Silenced Extractor 240 M³/H 33 Dba Wired.
