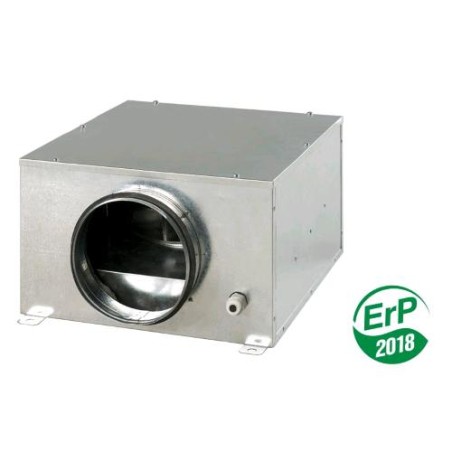

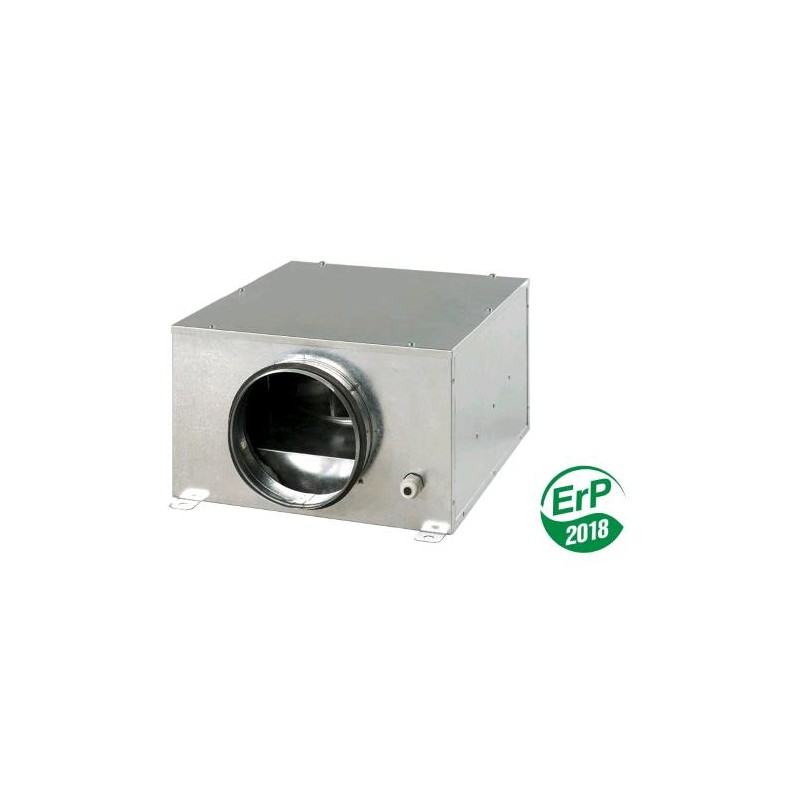

Ksb 200S R1 Silenced Extractor 950 M³/H 41 Dba Wired Vents

KSB 200S R1 SILENCED EXTRACTOR 950 M³/H 41 DBA WIRED VENTS

Ksb 200S R1 Silenced Extractor 950 M³/H 41 Dba Wired by Vents is a compact inline centrifugal fan designed for high-quality ventilation. applications. This device is ideal for commercial spaces, offices, and public areas where noise control is essential. With a maximum airflow of 950 m³/h, the KSB 200S R1 delivers high performance in a compact format.

The soundproof and thermally insulated design ensures quiet operation. The backward-curved impeller is driven by a 2-pole asynchronous motor, ensuring efficient performance. The sound pressure level is 41 dBA, making it suitable for noise-sensitive environments.

This extractor is designed for installation in tight spaces, such as above ceilings. It is compatible with round ducts of various diameters, from 100 mm to 315 mm. The galvanized steel construction, along with thermal and acoustic insulation material, contributes to Ksb 200S R1 Silenced 's durability and efficiency.

The KSB 200S R1 features rubber seals on the connecting pipes, ensuring optimal sealing. The fan is designed for maintenance-free operation thanks to ball bearings with selective lubricating oil. Speed control can be achieved via a thyristor or autotransformer speed controller.

Multiple KSB units can be connected to a single controller, respecting power and current limits. This model is versatile and can be mounted in any position relative to the airflow direction. It is the ideal solution for environments that require constant temperature control, such as greenhouses.

The electronic control module allows for automatic speed adjustment based on air temperature. It is available in two versions, with an integrated temperature sensor or with an external 4-meter probe.

TECHNICAL FEATURES:

1. Duct diameter: 200 mm.
2. Maximum airflow: 950 m³/h.
3. Sound pressure level: 41 dBA.
4. Housing material: galvanized steel.
5. Motor type: 2-pole asynchronous.
6. Speed control: thyristor or autotransformer.

MAIN FEATURES:

1. Soundproof: designed to reduce noise.
2. Compact: suitable for tight spaces.
3. Versatile: can be installed in various positions.
4. Durable: robust construction and high-quality materials.
5. Easy installation: compatible with various duct diameters.

WHY CHOOSE IT:

The KSB 200S R1 is an excellent choice for those seeking a quiet and powerful extractor. Its robust construction ensures long-lasting durability. The ease of installation makes it suitable for any environment. Temperature and speed control provide optimal comfort. It is ideal for spaces requiring excellent air quality. The mounting versatility allows it to adapt to various needs. Finally, the compact design makes it perfect for limited spaces. Product from the Vents brand. Model Ksb 200S R1 Silenced Extractor 950 M³/H 41 Dba Wired.
