TTM100 Silent Extractor 240 M³/H 29 Dba Non-Wired Vents

TTM100 SILENT EXTRACTOR 240 M³/H 29 DBA NON-WIRED VENTS

TTM100 Silent Extractor 240 M³/H 29 Dba Non-Wired by Vents is designed to ensure efficient and quiet air extraction. TTM100 Silent Extractor 240 is ideal for environments where noise must be minimized. Thanks to its acoustically insulated structure, the extractor offers high performance without compromising acoustic comfort. It is compatible with extraction ducts from Ø100 mm to Ø315 mm.

The TTM series combines the features of axial extractors and centrifugal fans. This ensures a powerful and constant airflow. Installation is flexible, allowing the extractor to be positioned at various angles. It is possible to install multiple units in parallel to increase extraction capacity.

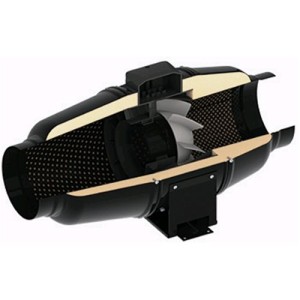

The outer case is made of steel coated with synthetic polymer. Internally, it is perforated to allow sound waves to pass through. This design reduces noise and improves product efficiency. The 50 mm mineral wool inside the case provides heat and noise resistance.

This extractor is recommended for libraries, conference rooms, kindergartens, and schools. Its maximum airflow is 240 m³/h, with a noise level between 24 and 29 dBA at 3 meters. The maximum operating temperature is 40 °C, ensuring long-lasting durability and reliability.

TECHNICAL SPECIFICATIONS:

1. Airflow: 240 m³/h.
2. Speed: min/max.
3. Voltage: 230 V / 50-60 Hz.
4. Power: 26 W.
5. Current: 0.10 A.
6. Maximum airflow: 240 m³/h.
7. Rpm: 2630.
8. Noise level at 3 m: 24-29 dBA.
9. Maximum operating temperature: 40 °C.
10. Protection rating: IP X4.

MAIN FEATURES:

1. Acoustically isolated design: reduces noise during operation.
2. Flexible installation: can be positioned at various angles.
3. Compatible with ducts: from Ø100 mm to Ø315 mm.
4. High-quality materials: steel case coated with polymer.
5. Easy installation: brackets included for mounting.

WHY CHOOSE IT:

This extractor is perfect for noise-sensitive environments. Its energy efficiency makes it a sustainable choice. The combination of performance and quietness is unique. It is easy to install and maintain. The versatility of installation is a great advantage. It is designed to last over time. The quality of materials ensures durability and reliability. Product from the Vents brand. Model TTM100 Silent Extractor 240 M³/H 29 Dba Non-Wired.
