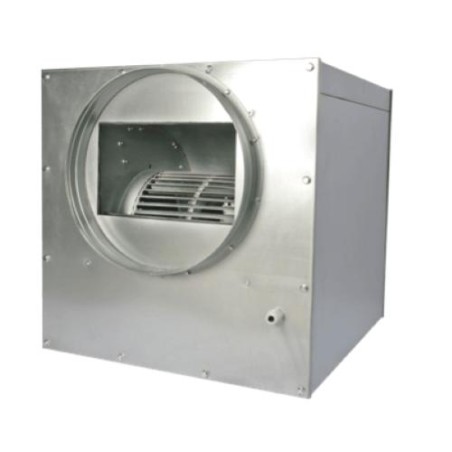

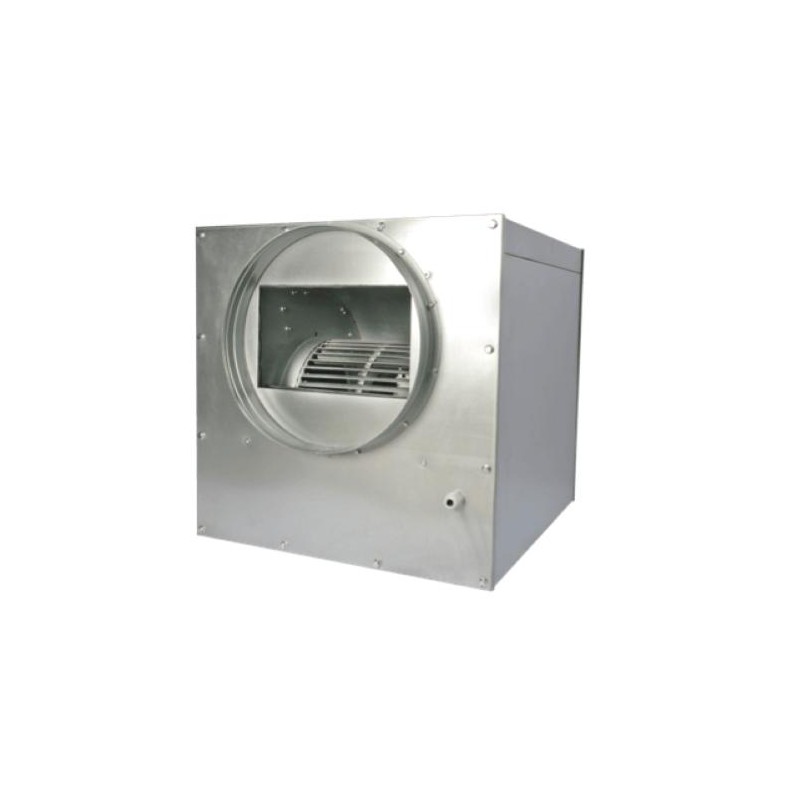

Iso Box Steel Ducted Extractor Steel 750 M3H Airfan

ISO BOX STEEL DUCTED EXTRACTOR STEEL 750 M3H AIRFAN

Iso Box Steel Ducted Extractor Steel 750 M3H by Airfan is an ideal solution for installation in circular air ducts. This extractor is designed to ensure quiet operation and high efficiency. Its compact structure allows for simple and quick installation. Thanks to the sound-absorbing foam insulation, the noise level is maintained at only 23.9 dB. It is an excellent choice for environments where low noise is required. The flow rate of 750 m³/h ensures adequate ventilation even in large spaces. Additionally, the device is designed to operate within a temperature range of -30°C to +70°C, making it versatile for various applications.

The front and rear flanges have a diameter of Ø 200 mm, facilitating integration into existing systems. Weighing 8.9 kg makes Iso Box Steel Ducted manageable during installation. The provided M6 screws ensure secure mounting. Airfan offers a range of air treatment units designed to meet the needs of various environments. These units are available for immediate delivery with flow rates ranging from 250 m³/h to 7,000 m³/h. Special models can be requested for small or large series.

TECHNICAL FEATURES:

1. Type: 6-6-750.
2. Flow rate: 750 m³/h.
3. Max current: 1.2 A.
4. Noise level: 23.9 dB.
5. Weight: 8.9 kg.
6. Box dimensions: 350x350x350 mm.
7. Front flange: Ø 200 mm.
8. Rear flange: Ø 200 mm.
9. Screws: M6.

MAIN FEATURES:

1. Design: compact.
2. Noise level: very low.
3. Insulation: bubble sound-absorbing foam.
4. Structure: galvanized steel.
5. Treated air temperature: from -30°C to +70°C.
6. Regulation capacity: excellent.
7. Operation: continuous.

WHY CHOOSE IT:

This extractor is designed for quiet and highly efficient operation. Its galvanized steel structure ensures durability and resistance. The sound-absorbing insulation reduces noise, making it ideal for sensitive environments. The flow rate of 750 m³/h is perfect for spaces of various sizes. It is easy to install due to its compact dimensions. The versatility of operation across a wide temperature range makes it suitable for various applications. Additionally, the brand offers models available in stock to meet immediate needs. Special versions can be requested for specific requirements. Model Iso Box Steel Ducted Extractor Steel 750 M3H.
