TTM125UN Silent Extractor 230 340 M³/H 25 29 Dba Wired Schuko + Speed Ctrl + Sensor Vents

TTM125UN SILENT EXTRACTOR 230 340 M³/H 25 29 DBA WIRED SCHUKO + SPEED CTRL + SENSOR VENTS

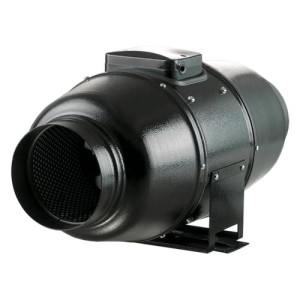

TTM125UN Silent Extractor 230 340 M³/H 25 29 Dba Wired Schuko + Speed Ctrl + Sensor by Vents is designed to ensure extremely quiet. air extraction. TTM125UN Silent Extractor 230 is ideal for environments where noise control is essential. Thanks to its acoustically insulated construction, the extractor offers high performance without compromising acoustic comfort. With a maximum airflow of 340 m³/h, it is suitable for spaces of various sizes. It is compatible with ducts ranging from Ø100mm to Ø315mm. The innovative design combines features of axial and centrifugal extractors, ensuring powerful and constant airflow. Installation is simple and versatile, allowing the unit to be positioned at different angles.

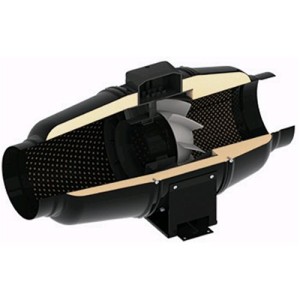

The outer case is made of steel coated with synthetic polymer. This material ensures durability and resistance. Internally, the case is perforated to allow sound waves to pass through. The sound waves are directed towards a two-level soundproofing surface. This design significantly reduces noise levels. Additionally, a 50mm thick layer of mineral wool contributes to acoustic and thermal insulation. The extractor is equipped with brackets for mounting on walls, ceilings, or floors. Multiple units can be installed in parallel to increase extraction capacity. Alternatively, they can be connected in series to achieve greater negative pressure.

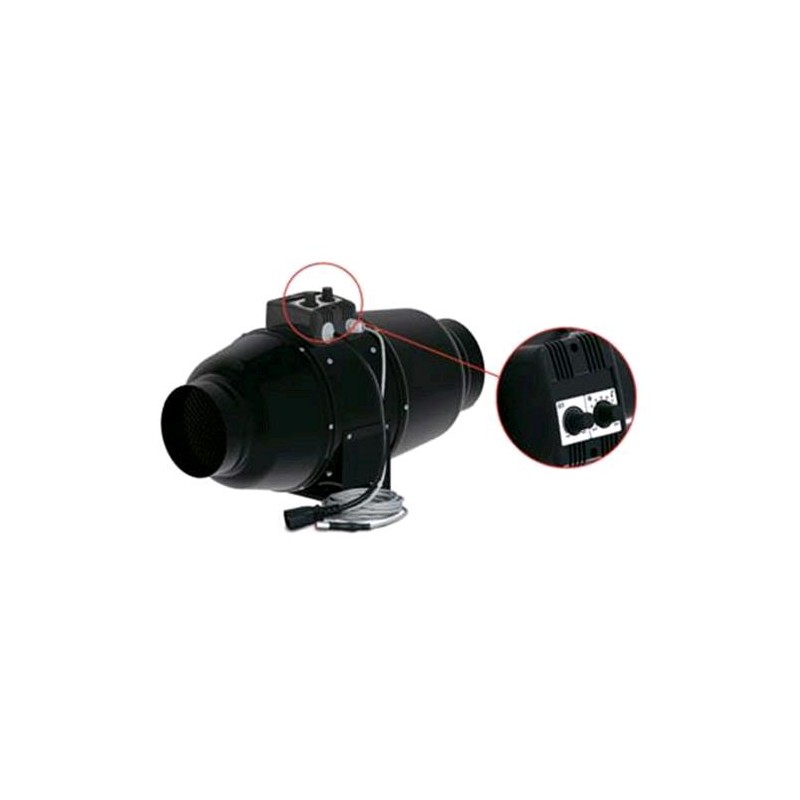

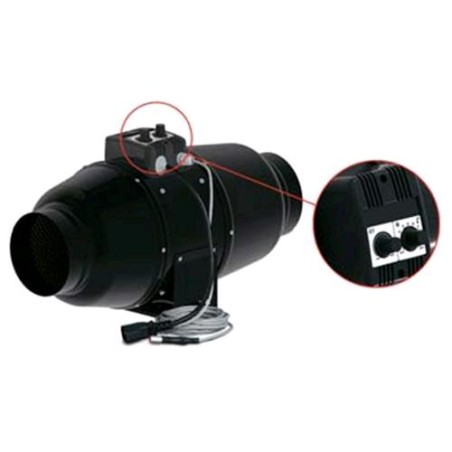

The U version includes a temperature sensor and a speed controller. This feature is particularly useful for environments where maintaining a constant temperature is important. The electronic temperature monitoring system automatically adjusts the motor speed. This allows controlling the airflow based on the desired temperature. The control panel features knobs to set the motor speed and thermostat for temperature. A LED light indicates when the system is operational.

The maximum airflow is 340 m³/h. The minimum and maximum power is 25/30 W. The current consumption is 0.11/0.13 A. The noise level at 3 meters ranges from 23 to 28 dBA. The maximum operating temperature is 40 °C. The protection rating is IP X4. These features make the TTM125UN extractor an excellent choice for those seeking an efficient and quiet product. Product from the Vents brand. Model TTM125UN Silent Extractor 230 340 M³/H 25 29 Dba Wired Schuko + Speed Ctrl + Sensor.
