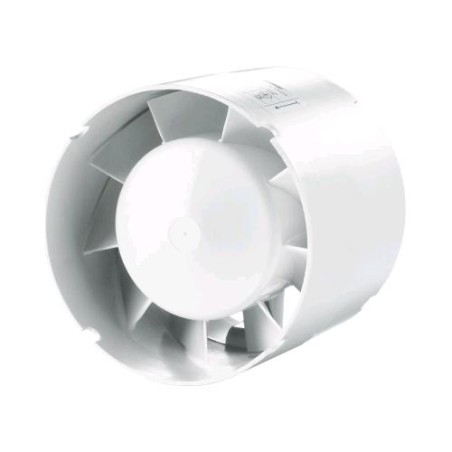

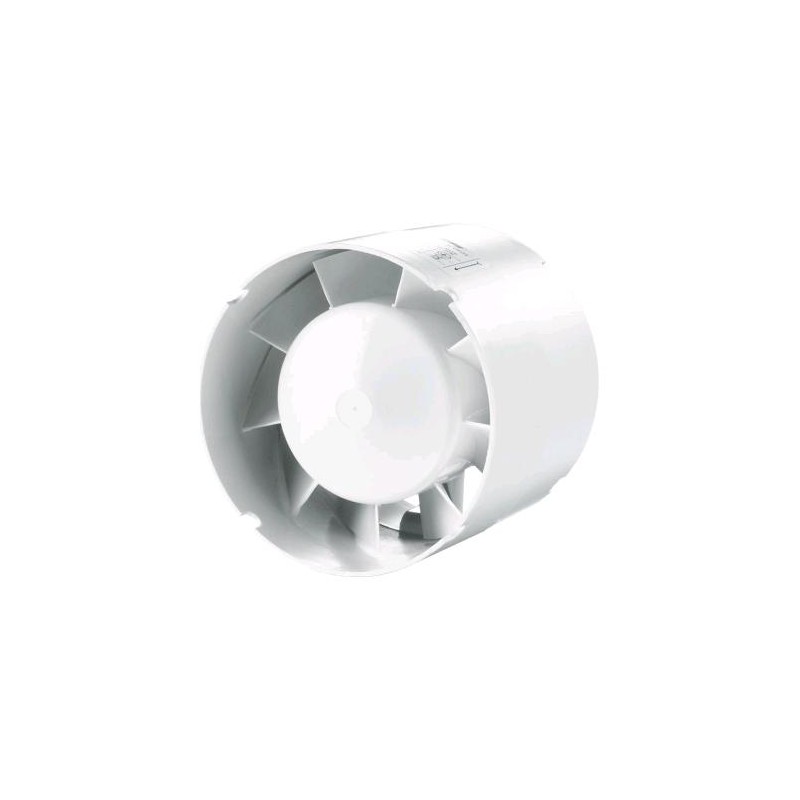

VKO1 125 Extractor 190 M³/H 38 Dba Vents

VKO1 125 EXTRACTOR 190 M³/H 38 DBA VENTS

VKO1 125 Extractor 190 M³/H 38 Dba by Vents is an axial extractor designed for air expulsion or introduction in small cultivation. environments. VKO1 125 Extractor 190 is ideal for PVC duct systems or flexible ducts. Its air capacity is 190 m³/h, making it suitable for use in confined spaces. The airflow movement is from low to medium, ensuring low air resistance. It is compatible with duct diameters of Ø 100, 125, and 150 mm.

The casing and impeller are made of high-quality ABS plastic, resistant to UV rays. This material ensures a long lifespan. The intelligent design of the fan increases efficiency and product longevity. The IP X4 protection rating provides good moisture protection. The electric motor is reliable and designed for continuous operation without maintenance requirements.

The VKO1 125 is equipped with overheating protection. It can utilize two types of control: Manual and Automatic. It can be mounted directly in the duct or on a flat surface using a specific bracket. The fan is designed for secure fastening, using straps when connecting to flexible ducts.

Fans in this series feature different diameters for the intake and discharge flanges. This allows the MV decorative grille to fit the appropriate intake flange diameter. The fan can be mounted on a horizontal or vertical flat surface using a mounting bracket. It is also possible to install two fans in series for higher performance.

For connecting the low-voltage 12 V fan motor to the 220 V / 50 Hz power supply, a separate step-down transformer TRF 220 /. 12-25 is required. This model is designed to ensure excellent energy efficiency and high performance.

TECHNICAL SPECIFICATIONS:

1. Power: 16 W.
2. Air capacity: 190 m³/h.
3. Input voltage: 220-240 V AC 50/60 Hz.
4. Current: 0.1 A.
5. Rpm: 2400 min-1.
6. Sound pressure level: 38 dB at 3 m.
7. Weight: 0.43 kg.
8. Duct diameter: 125 mm.
9. Motor type: 220-240 V / 50-60 Hz.

MAIN FEATURES:

1. Axial design: for optimal airflow.
2. Easy installation: bracket included for mounting.
3. Compatibility: with various duct diameters.
4. Energy efficiency: designed to reduce consumption.
5. Versatility: suitable for manual and automatic use.

WHY CHOOSE IT:

The VKO1 125 is an excellent choice for those seeking an effective and quiet extractor. Its robust construction ensures durability and resistance. It is designed for simple and quick installation. The option for manual and automatic control makes it versatile. The IP X4 protection ensures safe use in humid environments. Compatibility with different duct diameters offers flexibility. Finally, the axial design optimizes airflow, improving overall efficiency. Product from the Vents brand. Model VKO1 125 Extractor 190 M³/H 38 Dba.
