VKO1 150 Extractor 305 M³/H 40 Dba Vents

VKO1 150 EXTRACTOR 305 M³/H 40 DBA VENTS

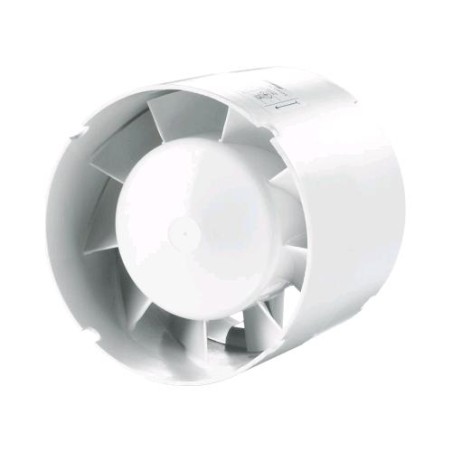

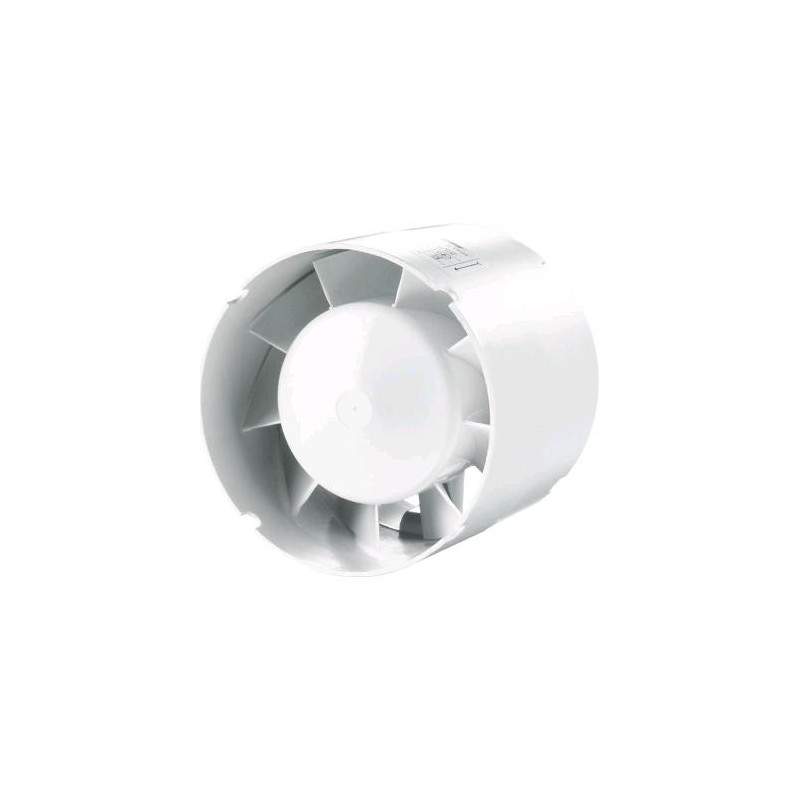

VKO1 150 Extractor 305 M³/H 40 Dba by Vents is designed for air expulsion and introduction in small cultivation environments. This axial fan is ideal for PVC duct systems or flexible ducts. Its air capacity is 305 m³/h, making it suitable for applications requiring effective ventilation.

The VKO1 150 is designed for low to medium airflow over short distances. The low air resistance allows for efficient operation. VKO1 150 Extractor 305 is compatible with air ducts of 100, 125, and 150 mm diameter. The casing and impeller are made of high-quality UV-resistant ABS plastic, ensuring durability over time.

The intelligent design of the fan enhances operational efficiency and extends the device's lifespan. The IP X4 protection rating provides adequate moisture protection. The electric motor is reliable and low power, designed for continuous operation without maintenance. Additionally, it is equipped with overheating protection.

The VKO1 150 offers two types of control: manual and automatic. It can be mounted directly in the duct or on a flat surface using a dedicated bracket. The fan is designed for secure fastening, using straps when connecting to flexible ducts. This model is available in various flange sizes to facilitate installation.

It is possible to install two fans in series for higher performance. To connect the low-voltage 12 V motor to the 220 V / 50 Hz power supply, a step-down transformer is required and is. available separately. The VKO1 150 is an excellent choice for those seeking an efficient and versatile extractor.

TECHNICAL SPECIFICATIONS:

1. Duct diameter: 150 mm.
2. Voltage: 220-240V.
3. Frequency: 50; 60 Hz.
4. Power consumption: 29 W.
5. Air capacity: 305 m³/h.
6. Current: 0.13 A.
7. Rpm: 2400 min-1.
8. Sound pressure level at 3 m: 40 dB.
9. Weight: 0.8 kg.

MAIN FEATURES:

1. Type: Axial extractor.
2. Material: ABS plastic.
3. Installation: Direct or flat surface.
4. Control: Manual and automatic.
5. Protection: IP X4.

WHY CHOOSE IT:

The VKO1 150 is ideal for those seeking a reliable extractor. Its ABS construction ensures long-lasting durability. The low power motor allows for energy savings. It is designed for continuous operation without maintenance. The availability of manual and automatic controls offers flexibility. Compatibility with various duct diameters facilitates installation. Finally, the intelligent design improves operational efficiency. Product from the Vents brand. Model VKO1 150 Extractor 305 M³/H 40 Dba.
