TTM315UN Silenced Extractor 1530 1950 M³/H 36 40 Dba Wired Schuko + Speed Ctrl + Sensor Vents

TTM315UN SILENCED EXTRACTOR 1530 1950 M³/H 36 40 DBA WIRED SCHUKO + SPEED CTRL + SENSOR VENTS

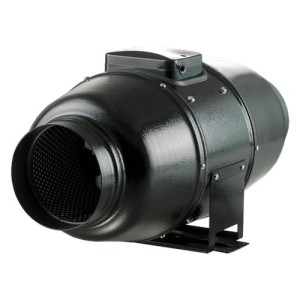

TTM315UN Silenced Extractor 1530 1950 M³/H 36 40 Dba Wired Schuko + Speed Ctrl + Sensor by Vents is designed to provide efficient and. quiet air extraction. This extractor is ideal for environments where noise control is crucial, such as libraries and conference rooms. Its acoustically insulated structure allows for extremely quiet operation while maintaining high aerodynamic performance.

The TTM315UN is compatible with air extraction ducts from Ø100mm to Ø315mm. TTM315UN Silenced Extractor 1530 combines the features of axial and centrifugal extractors, offering a powerful and constant airflow. Its installation is flexible, allowing it to be positioned at any angle within the extraction system.

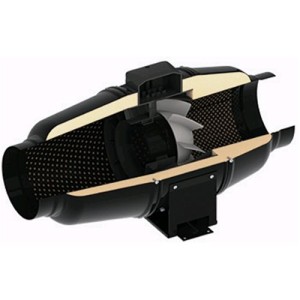

The external case is made of steel coated with synthetic polymer for durability. Internally, the case is designed with holes to allow sound waves to pass through, reducing noise. A 50mm mineral wool insulation further improves the quiet operation.

This extractor is equipped with brackets for easy mounting on walls, ceilings, or floors. Multiple units can be installed in parallel to increase extraction capacity or in series to achieve higher negative pressure. The integrated control unit and temperature sensor provide precise monitoring of environmental conditions.

The TTM315UN is recommended for use in environments requiring special attention to noise levels. Its maximum airflow of 1950 m³/h makes it suitable for various applications, ensuring excellent performance.

TECHNICAL FEATURES:

1. Airflow: 1950 m³/h.
2. Duct diameter: Ø315 mm.
3. Noise level: 36-40 dBA.
4. Voltage: 220-240 VAC.
5. Acoustic insulation: 50 mm mineral wool.
6. Case material: Steel coated with synthetic polymer.

MAIN FEATURES:

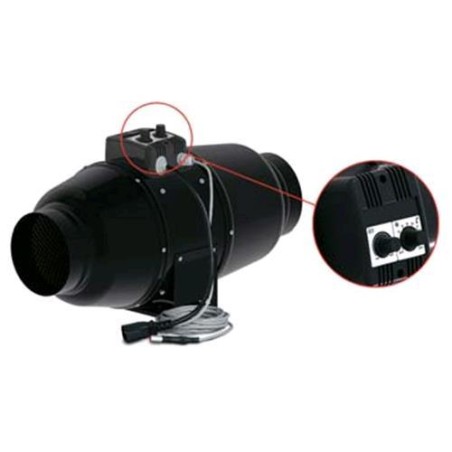

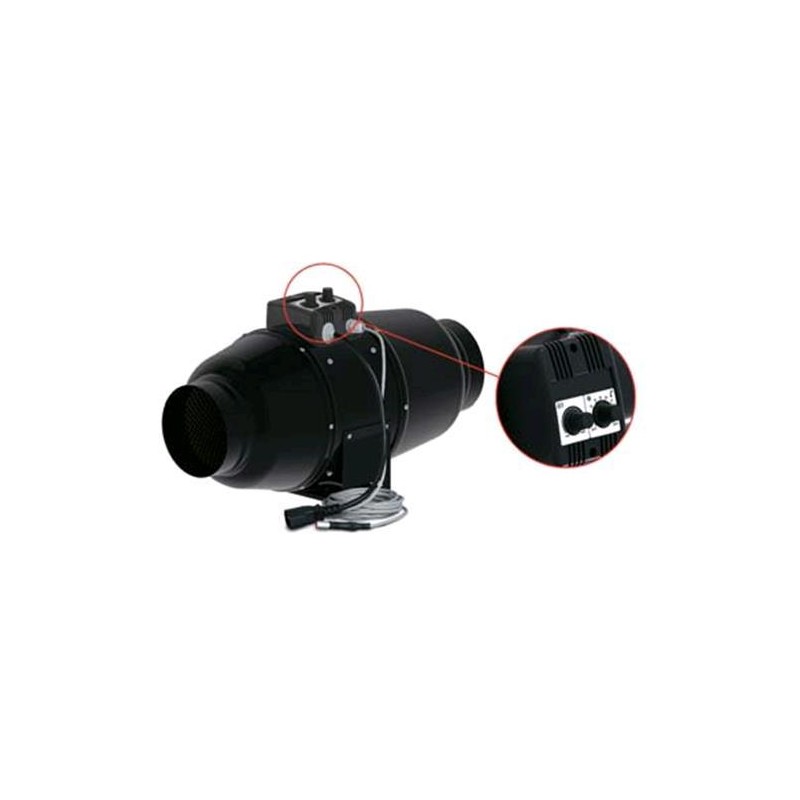

1. Integrated control unit: Temperature control.
2. Temperature sensor: Environmental monitoring.
3. Flexible installation: Can be positioned at any angle.
4. Mounting brackets: Included for wall, ceiling, or floor installation.
5. Duct compatibility: From Ø100 mm to Ø315 mm.

WHY CHOOSE IT:

The TTM315UN is the ideal solution for those seeking a quiet and powerful extractor. Its installation versatility makes it suitable for various environments. The robust construction ensures long-lasting durability. The integrated temperature sensor allows for constant monitoring of environmental conditions. The high airflow ensures excellent extraction efficiency. Noise reduction is a significant advantage in sensitive spaces. The combination of performance and quietness makes it a high-quality product. Product from the Vents brand. Model TTM315UN Silenced Extractor 1530 1950 M³/H 36 40 Dba Wired Schuko + Speed Ctrl + Sensor.
