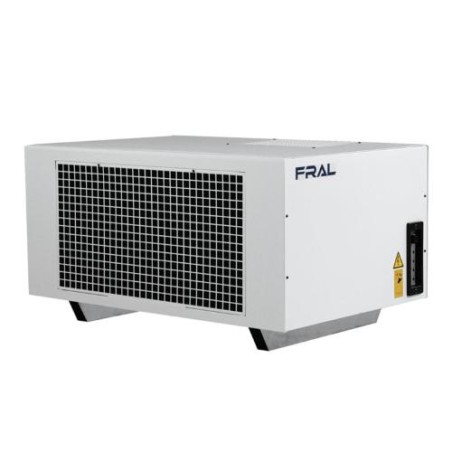

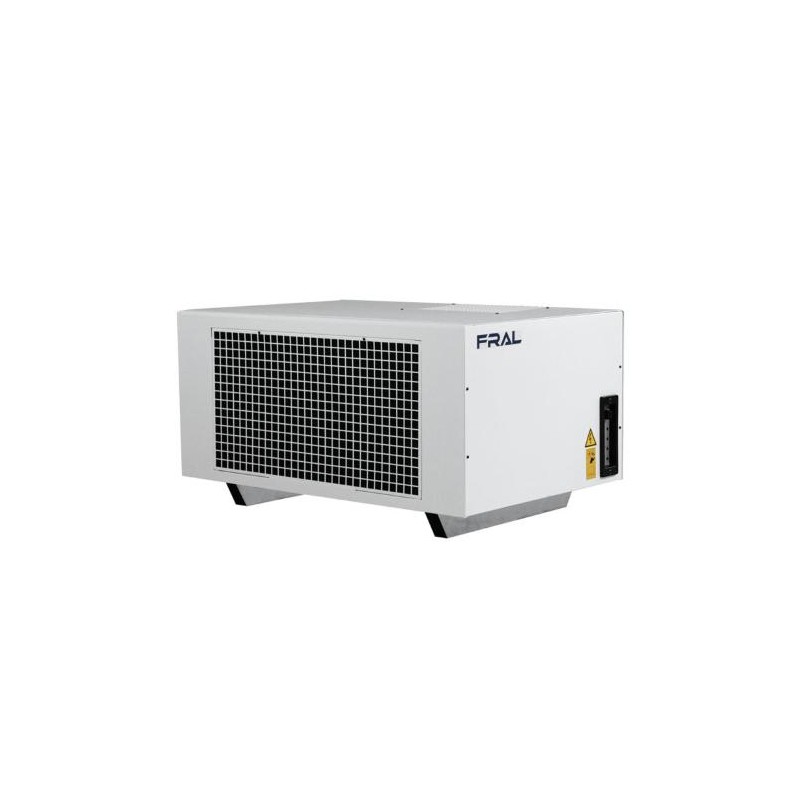

FRAL INDUSTRIAL DEHUMIDIFIER FD240 QUEST

Fral Industrial Dehumidifier FD240 by Quest is designed for humidity control in commercial and industrial environments. This dehumidifier offers a high dehumidification capacity of 240 L/24h at 32°C and 90% R.H. Its structure is made of hot-dip galvanized sheet metal, ensuring durability and resistance. It is ideal for warehouses, storage areas, and production environments where humidity levels must be controlled.

The double-inlet centrifugal fan allows an air flow rate of 2000 m³/h. Fral features a hot gas defrosting system, enabling operation even at low temperatures down to approximately 0.5°C. The condensate collection tank is made of corrosion-resistant material and has a fixed drain with a 3/4" M connection. Additionally, the high-efficiency air filter is washable and easily replaceable.

The integrated microprocessor manages defrost cycles and alarms. The onboard dehumidistat provides simple and direct control. For more advanced applications, it is equipped for a remote digital dehumidistat. The average power consumption is 3.7 kW, with a maximum power of 4.3 kW. The maximum current consumption is 9.1 A.

The protection rating is IP21, while IP44 is available on request. This dehumidifier operates on a three-phase 400/3N~/50 power supply and uses environmentally friendly refrigerant R410A. It is designed to operate in a wide range of temperature and humidity conditions, making it versatile for various industrial applications.

TECHNICAL SPECIFICATIONS:

1. Dehumidification capacity: 240 L/24h.
2. Average power consumption: 3.7 kW.
3. Maximum power consumption: 4.3 kW.
4. Maximum current consumption: 9.1 A.
5. Inrush current: 50 A.
6. Sound pressure level: 55 dB(A).

MAIN FEATURES:

1. Fan: double-inlet centrifugal.
2. Air flow rate: 2000 m³/h.
3. Defrosting system: hot gas.
4. Condensate collection tank: corrosion-resistant.
5. Air filter: high-efficiency, washable.

WHY CHOOSE IT:

The Fral FD240 Dehumidifier is ideal for critical environments. Its robustness ensures long-lasting performance. Maintenance ease is a significant advantage. The hot gas defrosting system guarantees efficiency even in cold conditions. It is designed to reduce operational costs and improve reliability. Its versatility makes it suitable for various sectors. Finally, the compact design facilitates installation in tight spaces. Product from the Quest brand. Model Fral Industrial Dehumidifier FD240.
