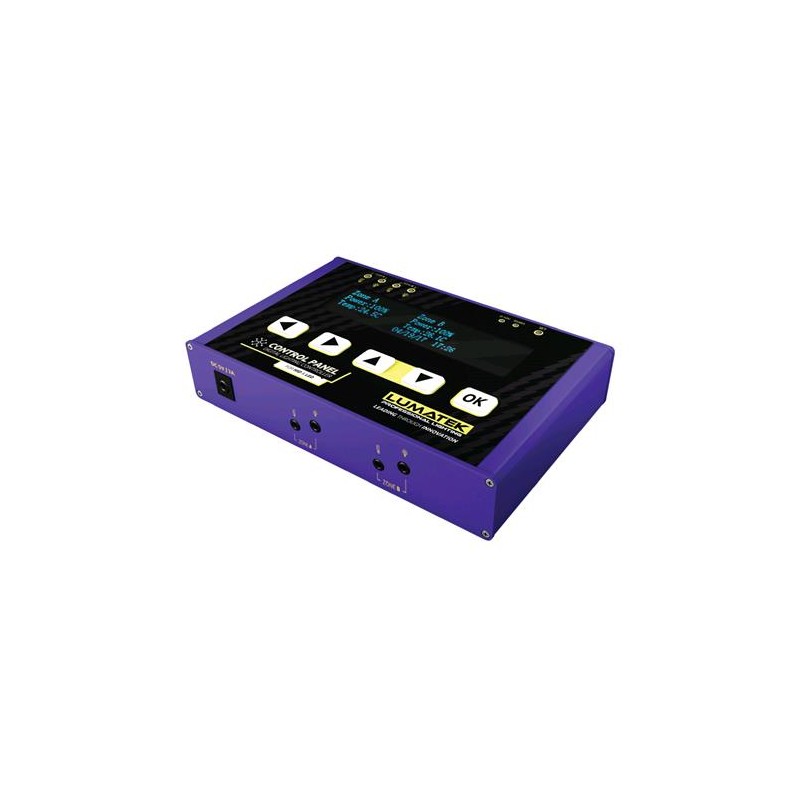

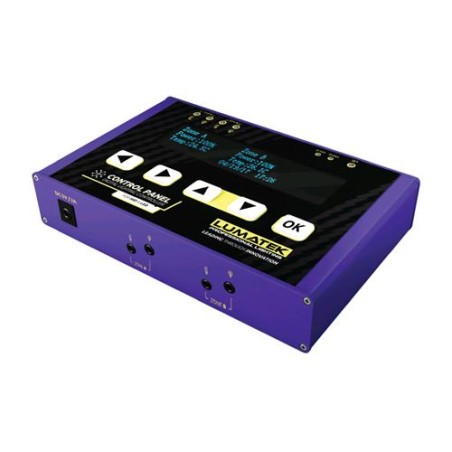

Digital Controller Control Panel Plus (Hid+Led) 2.0 Lumatek

DIGITAL CONTROLLER CONTROL PANEL PLUS (HID+LED) 2.0 LUMATEK

Digital Controller Control Panel Plus (Hid+Led) 2.0 by Lumatek is an advanced device for managing lighting in cultivation environments. This digital control panel with dual signal allows precise control of lighting fixtures, drivers, and Lumatek power supplies. Thanks to innovative technology, the controller monitors grow room temperatures and automates timing and light intensity. The on/off functions are managed safely. Simply connect it to the brand devices for easy environmental adjustments.

The the brand Control Panel Plus is designed to control up to 200 fixtures or HID power supplies per channel. It can also manage up to 50 LED drivers with 0-10V analog signal. Each channel can be used to control fixtures in separate rooms or to manage up to 400 fixtures in one room. This offers great flexibility and versatility.

The device is compatible with the brand HID power supplies ranging from 315 W to 1000 W. Additionally, it supports LED drivers from 90 W to 1000 W. The dual RS485 digital signal for HID and the 0-10 V analog protocol for LED ensure efficient and precise control. The controller automates switching, timing, and dimming, simulating dawn and dusk periods.

The the brand Control Panel Plus offers a power adjustment range from 10% to 115%, with an adjustment precision of 1%. Safety is ensured by a temperature control adjustment range from 0ºC to 40ºC and a safety switching range from 10ºC to 50ºC. The duration of dawn and dusk can be set from 0 to 30 minutes.

The panel dimensions are 1128 x 80 x 25 mm. It includes a power adapter of 100-240 V AC 50/60 Hz and a DC output of 5 V / 2A. The package also includes temperature sensors and connection cables for quick and easy installation.

TECHNICAL FEATURES:

1. Maximum power: 1000 W.
2. Maximum number of power supplies per zone: 200 HID or 50 LED.
3. Adjustment precision: 1%.
4. Controlled temperature range: 0ºC-40ºC.
5. Dawn and dusk duration: 0-30 min.
6. Dimensions: 1128 x 80 x 25 mm.

MAIN FEATURES:

1. Connectivity: with the brand power supplies and devices.
2. Automation: switching, timing, and dimming.
3. Monitoring: grow room temperature.
4. Control: dimmer and light intensity.
5. Simulation: dawn and dusk.

WHY CHOOSE IT:

The the brand Control Panel Plus is ideal for those seeking precise lighting control. Its versatility allows for managing different light sources. Ease of use makes it suitable for both beginners and experts. It automates complex processes, reducing plant stress. Safety is a priority, with integrated temperature controls. Compatibility with various the brand devices offers multiple usage options. Precision in power control ensures optimal results. This controller represents a complete solution for any grow room. Model Digital Controller Control Panel Plus (Hid+Led) 2.0.
