Hydroponic System BY Computer 07003 Prosystem Aqua

HYDROPONIC SYSTEM BY COMPUTER 07003 PROSYSTEM AQUA

Hydroponic System BY Computer 07003 by Prosystem Aqua is an automated system designed for controlling and maintaining EC and pH. Hydroponic System BY Computer is easy to use and allows continuous monitoring of pH and EC values in the nutrient solution. It has been designed to be the simplest and most functional nutrient and pH controller on the market. It can be used with any automated irrigation system or in any system where it is necessary to monitor and adjust water. EC and pH.

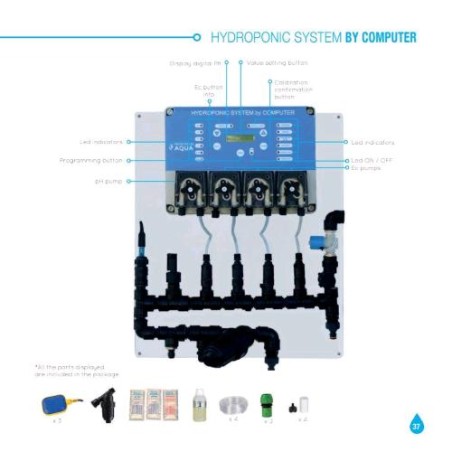

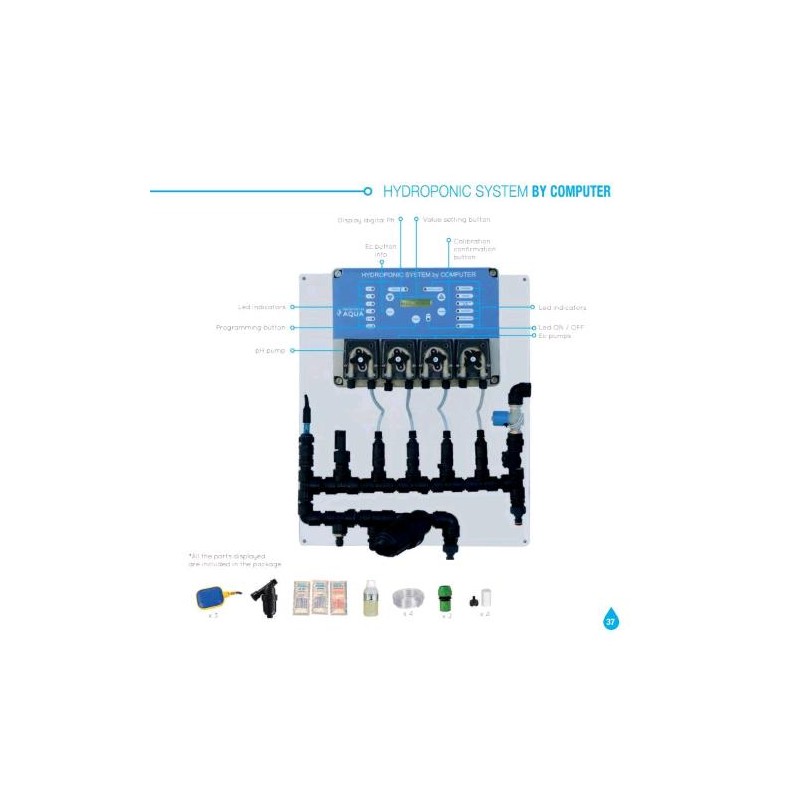

The controller automatically and precisely doses fertilizers in the water, adjusting acidity according to user-set parameters. The amount of fertilizer that the pump must draw from each bottle is independently adjustable. The system comes complete with everything needed and is ready for use, including pH probe, EC probe, pH probe holder, tubes and. fittings, injectors, as well as brackets and screws for wall mounting.

The system operation begins with turning on the controller. After installation and connection to power, proceed to program the fertilizer pumps. You must set the pH set point and select the pH up or pH down mode. It is important to verify that the pH and EC probes are calibrated. Additionally, you must program the on and off times.

The system automatically activates the tank recirculation pump at the scheduled time. The EC probe measures the conductivity of the solution, and the pump display shows the value. The pumps for adjusting electrical conductivity draw fertilizers from the bottles through the suction filter. The fertilizers are released into the water recirculation collector.

The pH probe continuously measures the acidity or alkalinity level of the nutrient solution, displaying the value on the pump display. The pH regulator pump draws from the bottle the buffer solution and doses the release until the programmed set point is reached. The recirculation pump is automatically activated by the controller only when the pH or EC values are perfectly adjusted and stable.

The system is equipped with optional level probes and an optional filling solenoid valve. A flow sensor can be integrated for more precise monitoring.

TECHNICAL FEATURES:

1. System type: Automated.
2. Ph control: Automatic.
3. Ec control: Automatic.
4. Included components: pH probe, EC probe, probe holder, tubes, fittings, injectors.
5. Programming: Easy and intuitive.
6. Operating mode: pH up and pH down.

MAIN FEATURES:

1. Precision: High precision in fertilizer dosing.
2. Ease of use: User-friendly interface.
3. Continuous monitoring: pH and EC values always under control.
4. Installation: Easy and quick.
5. Compatibility: Usable with various irrigation systems.

WHY CHOOSE IT:

This system offers precise and automatic control of nutrients. It is ideal for those who want to optimize plant growth. The ease of use makes it suitable for beginners as well. Simple programming saves time. The quality of materials ensures durability and reliability. It is a useful investment for hydroponics practitioners. The possibility of continuous monitoring ensures optimal results. Product from the Prosystem Aqua brand. Model Hydroponic System BY Computer 07003.
